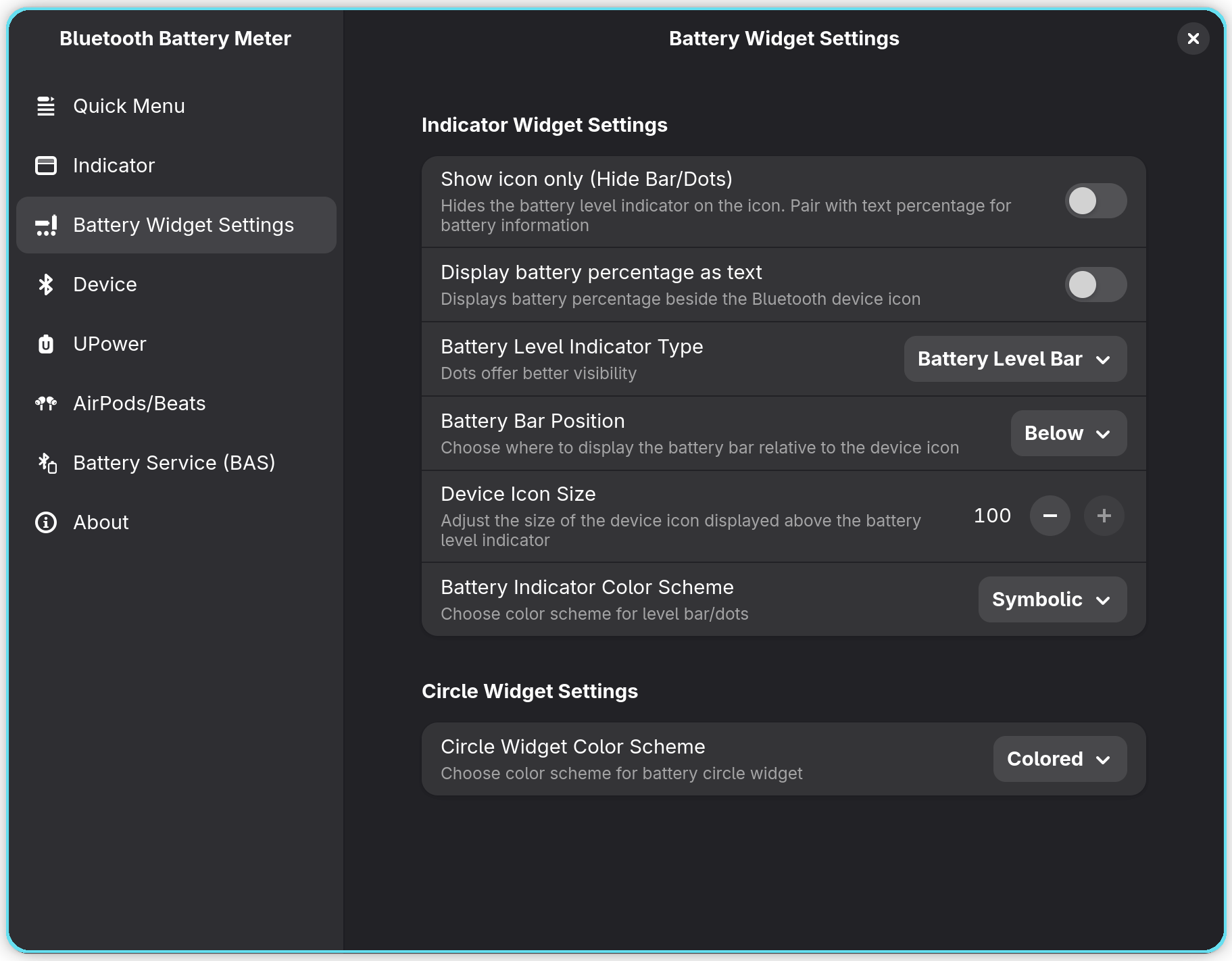

Battery Widget Settings

Battery Widget Preferences

Show icon only (Hide Bar/Dots)

Enabled: When enabled, the extension hides the battery level visualization (bar or dots) and displays only the Bluetooth device icon. This mode is best used together with the “Display battery percentage as text” option for a cleaner, minimal look while still retaining key battery information.

Below picture shows icon when this settings is enabled.

Best to be use this setting with Display battery percentage as text settings enabled and it will look like the picture shown below.

Disabled: When disabled, the icon will include a battery bar or dot indicator to represent the device’s charge level visually as shown below.

Display battery percentage as text

Display battery percentage in text next to the indicator icon.

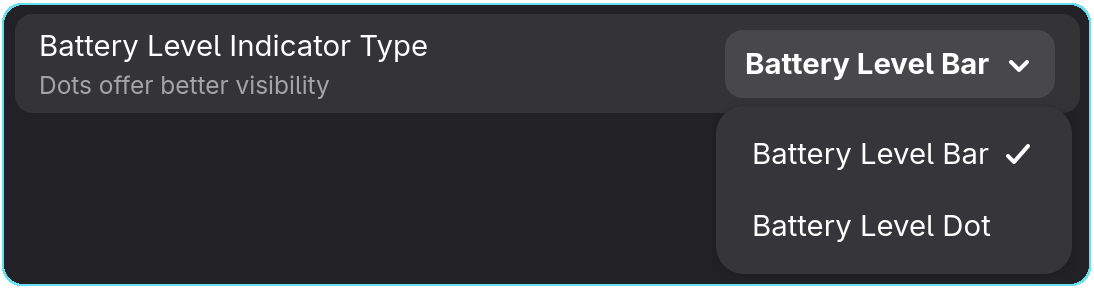

Indicator: Battery Level Type

Extension Preferences

Available levels types are Battery Level Bar and Battery Level Bar.

Battery Level Bar: display a battery bar below the device icon.
Battery Level Dots: displays dots representing level of battery.

Battery Level Bar Mode

Battery Level Dots Mode

Symbolic	Battery Level
	Approx. Fully Charge Battery level: 100 - 76%
	Battery level: 75-51%
	Battery level: 50-26%
	Battery level: 25-20%
	Warning! Below 20% Battery level: 20-0%

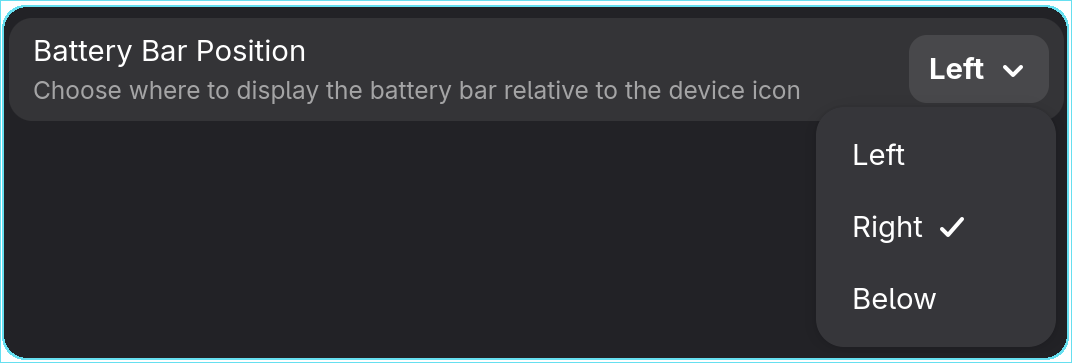

Level Bar Mode: Battery Bar Postion

Postion of Level Bar in respect to device icon.

Device Icon Size

Allows user to change device icon size.

100 %

70 %

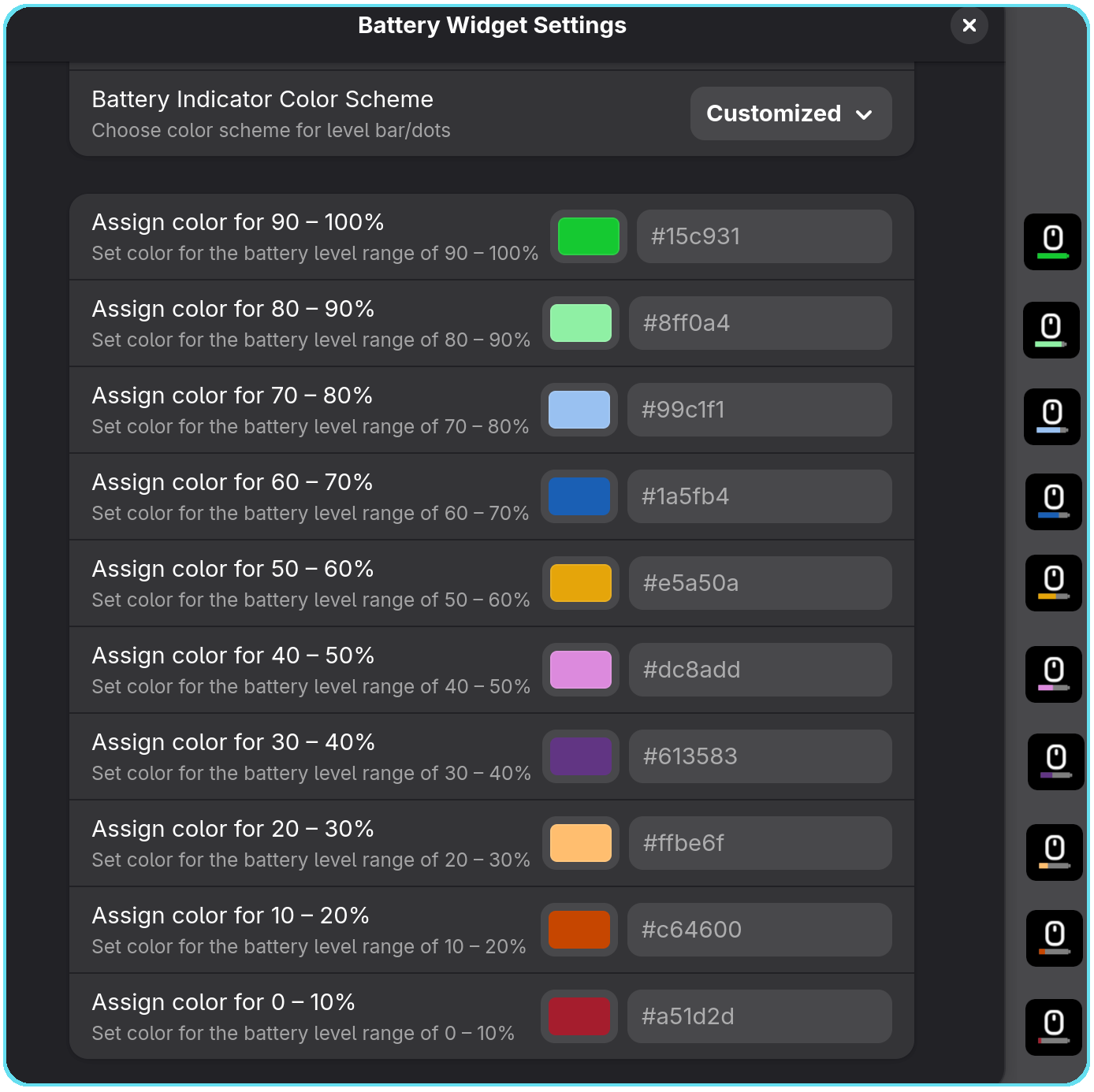

Battery Indicator Color Scheme

This setting provides three options to customize the color scheme of indicator level bar/dots:

Symbolic Color: The color of the bar/dot will match the system indicator’s foreground color (typically black or white, depending on the theme) when the battery percentage is greater than 20%. If the battery percentage falls below 20%, the bar/dot will use the system’s warning color (usually orange, depending on the theme).
